Product Dimensions 12"h x 42"w x 20"d

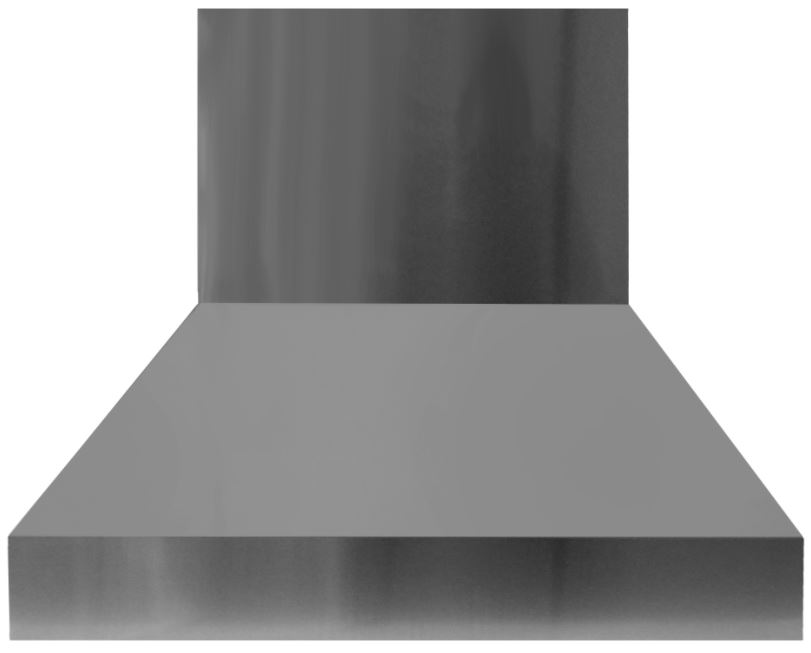

Trade-Wind® Pyramid Series 42-inch stainless steel wall mounted range hood combines elegant design with dependable ventilation performance. It effectively removes smoke, steam, and cooking odors while enhancing kitchen style. Durable stainless steel construction ensures long-lasting use, making it ideal for modern residential cooking spaces.Read More
Recessed controls and LED lights
Buttons and light glare hidden from the fron
Two LED lights brighten cooking area (three on 48” model)
Commercial grade stainless steel (#304 grade) and galvanized steel construction
CFM and sound tested by Energy Systems Laboratory at Texas A&M University
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration
3-speed motor control reduces blower and air movement sound
Sone rating of 1.5-7
Two large, oversized 14" x 15" stainless steel baffle filters reduce air movement sound and improve ventilation performance (three on the 48" model).
Electronic touch controls with blue LED back lighting
Plus NEW Remote Control with optional 5 minute shut off timer
Optional ductless conversion kit (MODEL #: 5BL-33-300-DCK1) on 390 CFM Models only
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ducted |
| Vent Location | Top |
| Duct Size (in.) | 8 |
| Bulb Type | LED |
| Maximum CFM | 600 |
| Range Hood Features | Light, Remote Control |
| Appliance Fit Width (in.) | 42 |
| Width (in.) | 42 |
| Height (in.) | 12 |
| Depth (in.) | 20 |
| Product Weight (lbs.) | 47 |
| Collection | Pyramid |
| Series | Pyramid |
| Voltage | 120 |
Specifications | |
| Models | 30", 36", 42" & 48" |
| Hood Style | Pyramid |
| CFM | Internal motor models deliver 390 CFM (code compliant), 600 CFM, or 780 CFM |
| Material | Commercial grade stainless steel (#304 with #4 brush finish) |
| Filters | 30", 36" & 42" Models: 2 Oversized 14" x 15" stainless steel Baffle Filters 48" Model: 3 Oversized 14" x 15" stainless steel Baffle Filters Dishwasher safe with 2 easy-grip handles. |
| Duct Cover Options | Optional telescopic duct cover to 12′ ceiling sold separately. |
| Installation | Installs easily to desired ceiling height with telescopic duct cover. Wiring diagram label for simple electrical connection. |
