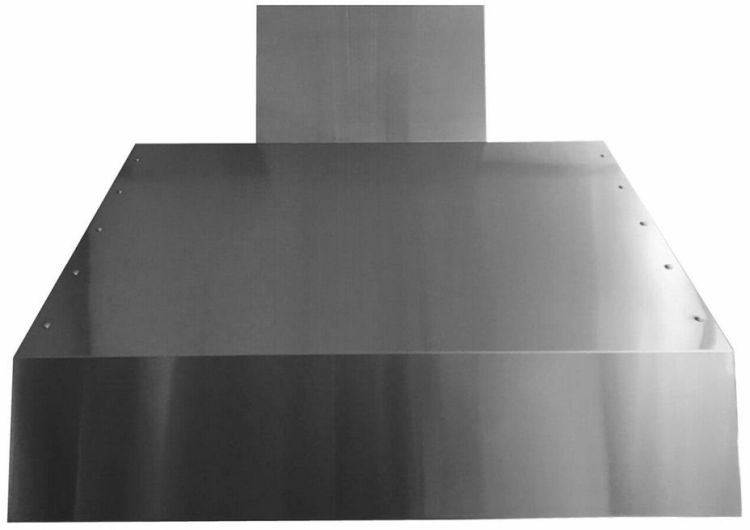

Trade-Wind® 7200 Series 54-inch stainless steel outdoor wall mounted range hood provides powerful ventilation for outdoor kitchens ensuring effective smoke grease and odor removal with durable weather resistant construction quiet performance and dependable operation for grilling cooking gatherings and extended outdoor useRead More
Recessed controls and LED lights
Buttons and light glare hidden from the front
Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model).
Commercial grade stainless steel (#304 grade) and galvanized steel construction
CFM and sound tested by Energy Systems Laboratory at Texas A&M University
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration
3-speed motor control reduces blower and air movement sound
Double bank of baffle filters allows for the largest active capture area in outdoor hoods
Generously proportioned 32” depth of hood bottom, 15′′ depth at top, 24′′ high, provides an exceptional capture area
Cool touch knarled knobs for easy control
All 24” bodied hoods easily convert from vertical discharge to horizontal at job site
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ducted |
| Ventilation Direction | Vertical |
| Vent Location | Top |
| Grease Filter Type | Baffle |
| Bulb Type | LED |
| Range Hood Features | Dishwasher Safe Filter, Light |
| Fan Speed Options | 3 |
| Outdoor Approved | Yes |
| Appliance Fit Width (in.) | 54 |
| Width (in.) | 54 |
| Product Weight (lbs.) | 140 |
| Collection | 7200 Series |
| Series | 7200 Series |
| Voltage | 120 |
| Amp | 15/20 |
| Frequency | 60 |
Specifications | |
| Models | 36”, 42”, 48”, 54”, 60”, 66” & 72” |
| CFM | Two or four internal sealed motors deliver 1200 CFM or 2300 CFM Optional in-line blowers deliver 1266 CFM |
| Material | Heavy gauge commercial stainless steel (#304 grade, 22-gauge) Dimmable 50 watt halogen lights |
| Filters | Four 12” by 14” baffle filters improve performance (six or eight filters on larger models) Design of the stainless steel commercial baffle filters adds a professional appearance and improved performance |
| Installation | Generously proportioned 32” depth at bottom, 15″ depth at top, 24″ high hood provides an exceptional capture area |
